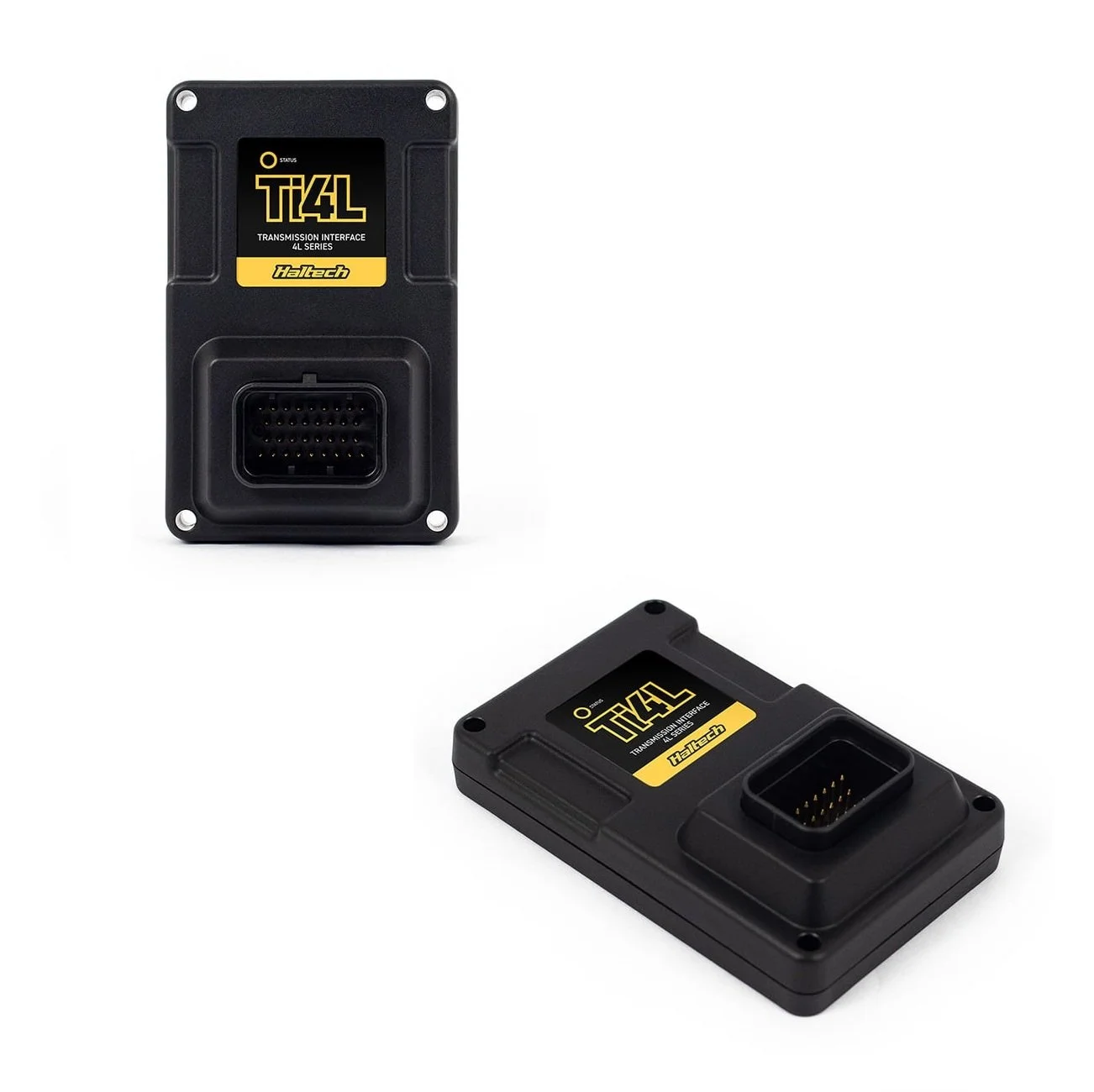

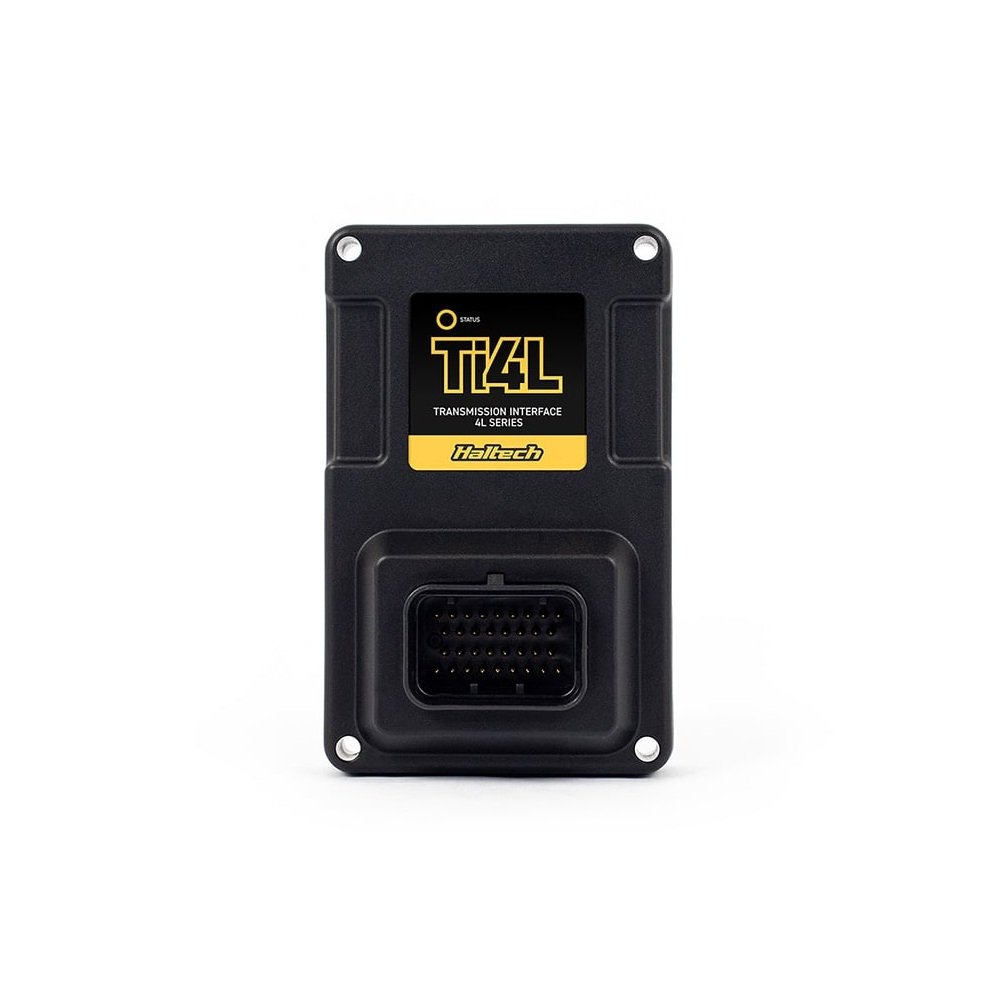

The Haltech Ti4L unit allows easy control for GM's popular 4L series of automatic transmissions. Designed as an expansion module for the NEXUS ECU and VCU range the Ti4L will be programmed via our NSP software, or Rebel LS users will be able to follow the simple set up wizard in the Haltech Connect App. Easy set-up is not the only feature! We've also developed smart long-term learning strategies via closed loop line pressure control, which means shifting gets better the more you drive.

Supports

• 4L60E, 4L65E, 4L70E (Non 4x4 2006-2008 only; 2009 onwards use different pinouts on the main transmission connector.)

• 4L80E, 4L85E (Non 4x4 1994 onwards only; 1991-1993 use a different main transmission connector.)

The Ti6L Transmission Interface Kit - Suits GM 6L80/90 Automatic Transmissions, running compatible OS version.
EARLY ACCESS - SHIPPING NOW!

Please Note: While all reasonable care has been taken to support all TCM operating systems known to Haltech, there may be operating systems out there that are not yet supported

If you come across an unsupported operating system, a third party tool will be required to extract the Operating System binary, it would be advised to have access to such a tool before purchasing the Ti6L

Once extracted, please email the operating system binary to support@haltech.com with the title - Ti6L Support or give us a call, we are here to help

We will do our best to add support within 2 business days

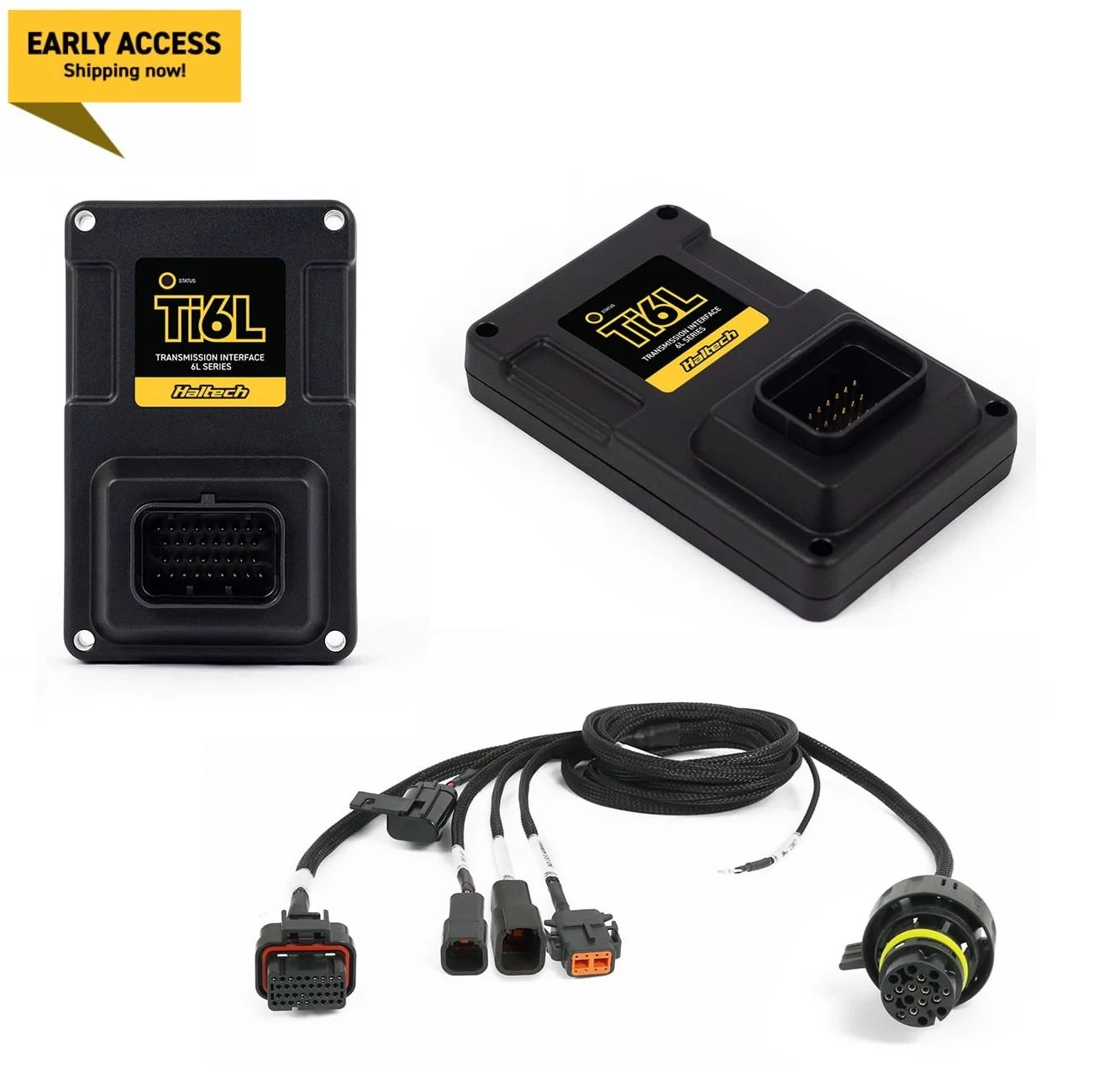

This device, in conjunction with a Nexus series 6Lx0 transmission harness (HT-187007), enables a Nexus ECU or VCU to integrate and control a supported GM 6L series automatic transmission. This kit is plug and play with a Rebel LS ECU and terminated harness via the transmission breakout connector.

Kit Includes

• HT-196002 Nexus Ti6L

• HT-187007 Nexus Series 6Lx0 Transmission Harness

• Mounting hardware kit

• Opposing connectors

• Quick Start Guide
